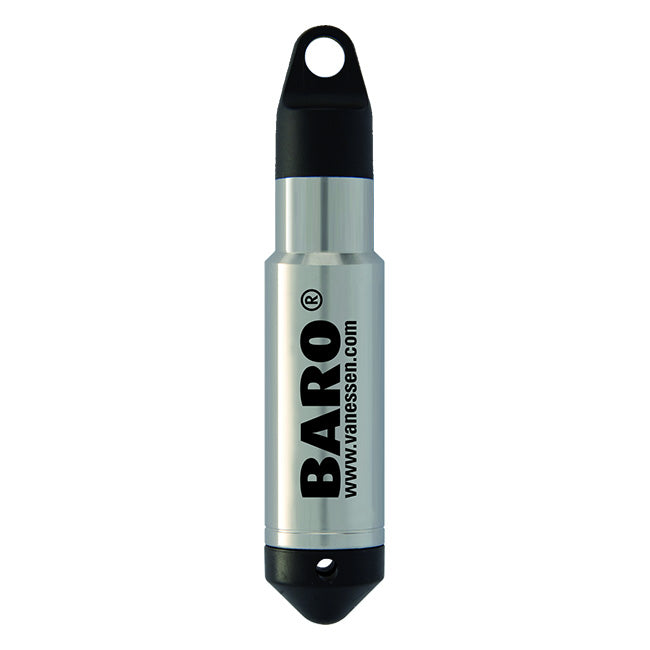

Van Essen Instruments Baro-Diver Data Logger
Free Shipping Available
The Baro-Diver is ideal for atmospheric pressure and shallow water monitoring.
The Baro-Diver® is a datalogger for long-term uninterrupted, real-time atmospheric pressure monitoring. In addition, the Baro-Diver can monitor shallow water levels using a pressure sensor when submerged at a fixed level under the water surface. The pressure sensor measures the equivalent hydrostatic pressure of the water above the sensor diaphragm to calculate the total water depth. The Diver autonomously measures pressure and temperature and records them in its internal memory.
The Baro-Diver features:
- Designed for up to 10 years of use.
- Fast download speed so you spend less time in the field.
- Large memory lets you takea sample every hour for 8 years.
- Enhanced data integrity with the new backup memory feature.
- Compatible with all of your existing Diver accessories.
The Diver features a stainless steel (316L) casing with a 22 mm diameter. The Baro-Diver can store a maximum of 72,000 measurements (date/time, pressure and temperature) in its working memory and 72,000 measurements in its backup memory.
The Baro-Diver samples pressure ant temperature at fixed length intervals and stores these values in fixed length or continuous memory.
Features & Benefits Click here to learn more about the product.
Features
- Compact size: Ø 22 mm – length 110 mm
- Memory: 72,000 records of time stamp, pressure and temperature with backup
- Continuous and fixed length memory
Benefits
- Easy installation
- Cost effective frequent, long-term measuring
- Reliable and accurate data
- Low maintenance, No user calibration
Applications Click here to view product applications.
- Barometric compensation
- Groundwater monitoring projects
- Surface water monitoring
- Monitoring of shallow waters
- Estuary and wetlands monitoring
- Aquifer storage and recovery
Key Specifications Click here to view product specifications.
General
| Length | 110 mm |
| Diameter | 22 mm |
| Memory | 72,000 measurements with backup |
| Weight | 104 grams |
| Housing | stainless steel 316L |
| Battery life | up to 10 years (dependent on usage) |
| Sample interval | ½ second to 99 hours |
| Sample methods | Fixed interval |
Pressure
| Model | DI800 | Unit |
|---|---|---|
| Range | 1.5 | meter |
| Accuracy* | ±0.5 | cmH2O |
Temperature
| Value | Unit | |
|---|---|---|
| Range | -20 .. +80 | °C |
| Accuracy* | ±0.1 | °C |
| Resolution | 0.01 | °C |
*typical, see product manual for full technical specification
